A deployment set is a policy that controls the distribution of Elastic Compute Service (ECS) instances. You can use deployment sets to plan how to implement disaster recovery plans and ensure service availability when you create ECS instances.
Deployment strategies
You can use a deployment set to distribute your ECS instances to different physical servers to ensure high service availability and implement underlying disaster recovery. If you specify a deployment set when you create ECS instances, the instances are created and distributed based on the deployment strategy that you preset for the deployment set within the specified region.
Deployment sets support the following deployment strategies:
High availability strategy
When you use the high availability strategy for a deployment set in a specified region, all ECS instances in the deployment set are distributed across different physical servers in the region. The high availability strategy applies to application architectures where ECS instances must be isolated from each other, and can significantly reduce the chances of service unavailability.
High availability group strategy
When you use the high availability group strategy for a deployment set, the deployment set can be divided into up to seven deployment set groups. You can distribute multiple instances in a deployment set to different deployment set groups based on your business needs. Instances in different deployment set groups are strictly distributed to different physical servers. Instances in the same deployment set group may not be strictly distributed to different physical servers.
Low latency strategy
If you use the low latency strategy for a deployment set, ECS instances in the deployment set that reside in each zone are deployed to the same network topology in the zone to reduce network latency. In this case, high availability cannot be ensured because multiple ECS instances may be scheduled to the same physical server.
You can call the DescribeDeploymentSetSupportedInstanceTypeFamily operation and set Strategy to LowLatency to query the ECS instance families that support the low latency strategy.
If a supply shortage occurs in a specified region, you may be unable to create ECS instances or start pay-as-you-go instances that were stopped in economical mode in that region. In these cases, we recommend that you wait a while and then try again.
Deployment example

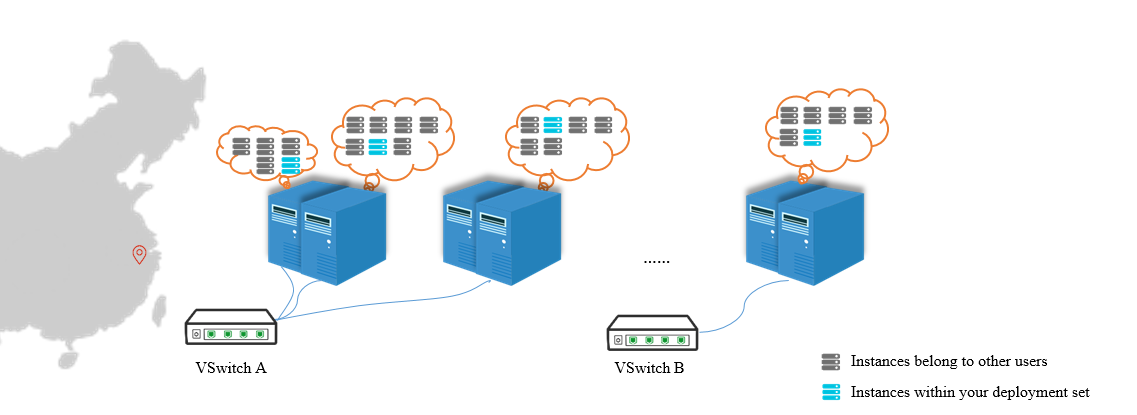

The following figure shows a typical example on how to use a deployment set to improve business reliability. In the deployment set, four ECS instances are distributed to four different physical servers.
To maintain low communication latency between ECS instances in a deployment set, we recommend that you keep the network types of the instances the same. For example, you can select the same virtual private cloud (VPC) for the ECS instances when you create the instances.
Billing
Deployment sets are free of charge, but you are charged for the usage of resources, such as ECS instances, disks, snapshots, images, and public bandwidth, in deployment sets. For more information, see Billing overview.
Limits
Before you use deployment sets, take note of the following items:
Deployment sets cannot be merged.
Preemptible instances cannot be created in deployment sets.
Dedicated hosts cannot be created in deployment sets.
The number of instances that can be created in a deployment set varies based on the deployment strategy that is adopted by the deployment set.
High availability strategy: In a deployment set that adopts the high availability strategy, you can create up to 20 ECS instances per zone. You can use the following formula to calculate the maximum number of ECS instances that you can create in a deployment set within a region: 20 × Number of zones within the region.
High availability group strategy: In a deployment set that adopts the high availability group strategy, you can create up to 7 deployment set groups per zone and up to 20 ECS instances per deployment set group. You can use the following formula to calculate the maximum number of ECS instances that you can create in a deployment set within a region: 7 × 20 × Number of zones within the region.
Low latency strategy: In a deployment set that adopts the low latency strategy, you can create ECS instances only in a single zone. Up to 20 ECS instances can be created in the zone.
Instances of the following instance families can be created in deployment sets:
NoteSome instance families support only specific deployment set strategies. You can call the DescribeDeploymentSetSupportedInstanceTypeFamily operation to query the instance families that support different deployment strategies.
Deployment strategy
Instance family that supports the strategy
High availability strategy and high availability group strategy
g8y, g7se, g7a, g7, g7t, g7ne, g6, g6e, g6a, g6h, g5, g5ne, sn2ne, sn2, and sn1
c8y, c7se, c7, c7t, c7a, c6, c6a, c6e, c5, ic5, and sn1ne
r8y, r7, r7se, r7t, r7a, r6, r6e, r6a, re6, re6p, r5, re4, se1ne, and se1
hfc7, hfg7, hfr7, hfc6, hfg6, hfr6, hfc5, and hfg5
d3c, d2s, d2c, d1, d1ne, d1-c14d3, and d1-c8d3
i3g, i3, i2, i2g, i2ne, i2gne, and i1
ebmg5, sccgn6, scch5, scch5s, sccg5, and sccg5s
t6, xn4, mn4, n4, e4, n2, and n1
gn6i
Low latency strategy
g8a and g8y
c8a and c8y
r8a and r8y
Supply shortage may result in a failure to create instances or start pay-as-you-go instances that were stopped in economical mode in a deployment set. For more information, see Economical mode.
For more information about the limits and quotas of deployment sets, see the "Deployment set limits" section of Limits.
Operations on deployment sets
Scenario | Operation in the ECS console | API operation |
Create a deployment set | ||
Create an ECS instance in a deployment set | ||
Add an ECS instance to a deployment set or move an instance from one deployment set to another. | ||
Modify the name or description of a deployment set | ||
Delete a deployment set |
